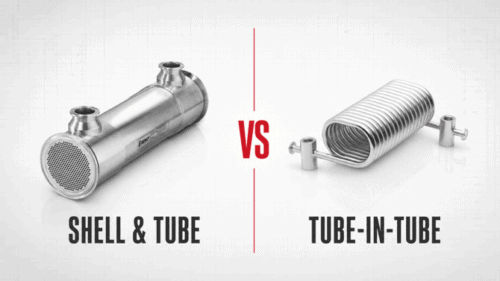

Tube-in-Tube vs. Shell-and-Tube Heat Exchangers
Choosing the right heat exchanger isn't about which design is "better"—it's about which one fits the process. At Exergy, we design both, so the focus stays on the application, not the product.
Tube-in-Tube
Concentric design—one tube inside another—typically arranged in counterflow.
-
Compact systems with limited space
-
Lower to moderate flow rates
-
Sanitary or cleanable applications
-
Fouling-risk services requiring easy access
Exergy application: Biotech, pharma, and specialty processes where cleanability, durability, and precise control are essential.
Shell-and-Tube
A bundle of tubes enclosed in a shell, with fluids flowing through and across them.
-
Higher flow rates and larger heat duties
-
Industrial process heating and cooling
-
High temperatures, pressures, or phase changes
-
Complex operating conditions
Exergy application: Industries where uptime and consistent performance matter most, built for reliability and flexibility.

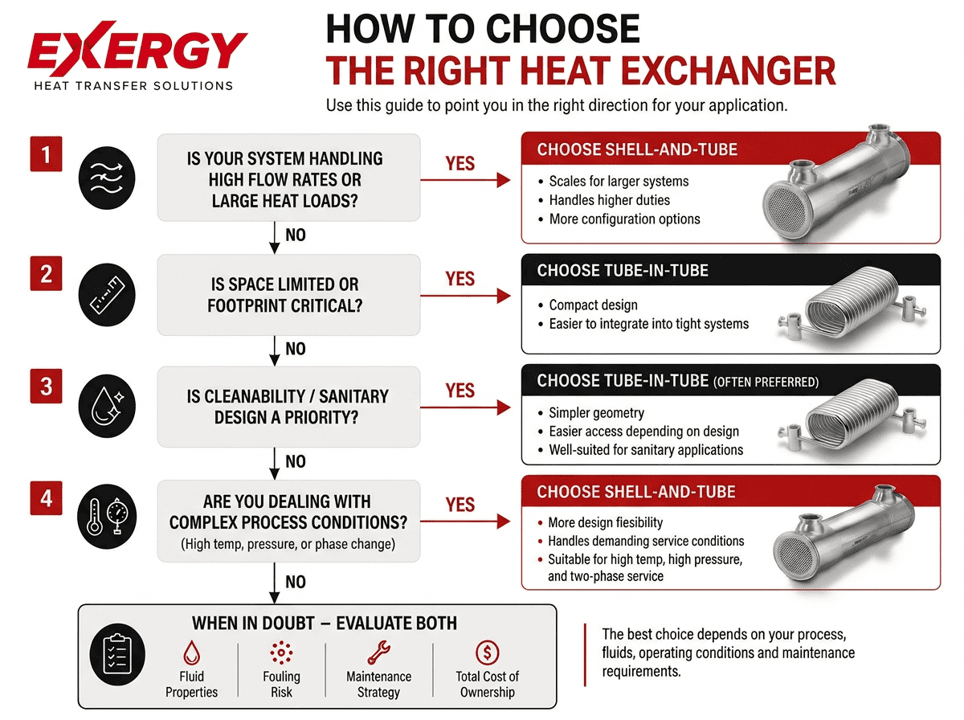

What Actually Drives the Decision
Flow Rate & Heat Duty
Larger systems lean toward shell-and-tube; smaller, targeted applications may suit tube-in-tube.
Space Constraints
Tube-in-tube is often easier to fit into tight layouts and cleanroom environments.
Pressure & Temperature
Both designs can be engineered for high pressure and temperature—limits depend on design details, not type.
Maintenance Strategy
Accessibility, cleanability, and downtime requirements often drive the decision as much as performance.
Real-World Example
A pharmaceutical manufacturer needed a compact solution for heating fluids in a cleanroom. Space was limited and sanitary requirements were strict. A tube-in-tube exchanger was selected—it fit the layout, was designed for drainability and sanitary connections, and handled the required temperature range without unnecessary complexity.
It wasn't about which design was "better"—it was about which one fit the process.
"The problems start when assumptions replace evaluation—when a design is chosen based on habit instead of process requirements. That's where experience matters."
Bring Your Data
Working through a new system—or fixing one that isn't performing? We'll walk through it with you. No generic recommendations. Just a solution that fits.
